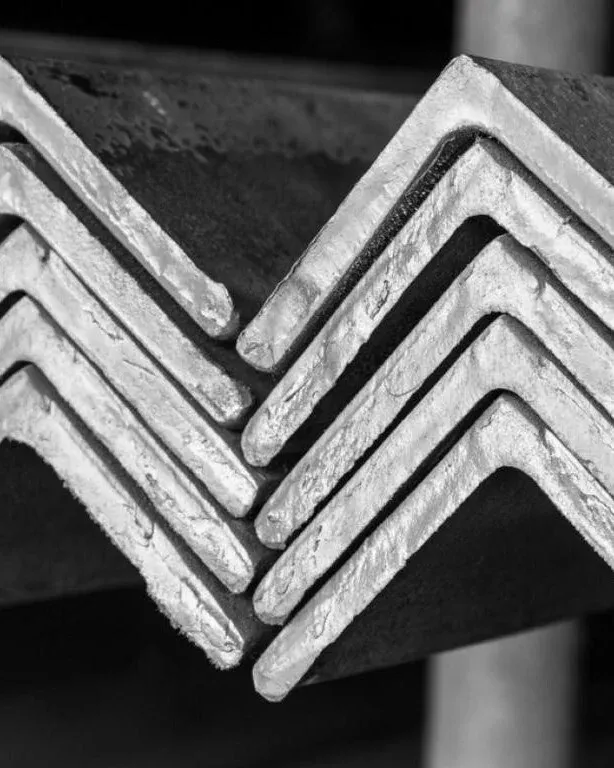

Equal Angle Bar

The equal angle bar is a fundamental structural component featuring two legs of the exact same length, forming a symmetrical 90-degree L-shape. Manufactured to strict industry standards, this standard quality ferrous metal profile provides balanced support and reliable structural integrity. Whether you are sourcing materials for high-volume commercial developments, machinery framework, apartment repairs, or personal farm plots, we supply equal angle bars tailored to your exact volume requirements.

Contact us to get a custom quote for your required volume.

Technical Specifications

Our steel angle bars ensure reliable performance in load-bearing, reinforcement, and finishing applications.

  • Steel Grades: Available in standard S235 and high-strength S355 grades.
  • S235: A highly versatile and cost-effective ferrous metal grade for everyday construction, structural framing, and general fabrication.
  • S355: A more durable, wear-resistant steel grade designed for heavy-duty load-bearing structures. Due to its enhanced mechanical properties, it is slightly more expensive than S235.
  • Standard Lengths: L-6000mm and L-12000mm (availability depends on the chosen steel grade and profile dimensions).

Applications of Equal Angle Bars

Thanks to its balanced L-shaped geometry, the equal angle bar is widely used in nearly all types of building construction and metal fabrication. Common applications include:

  • Building frames and heavy-duty load-bearing steel structures.
  • Connecting, reinforcing, and strengthening different architectural and industrial elements.
  • Covering and decorative finishing for corners and edges.
  • Supporting brackets, machinery frames, and infrastructure applications.

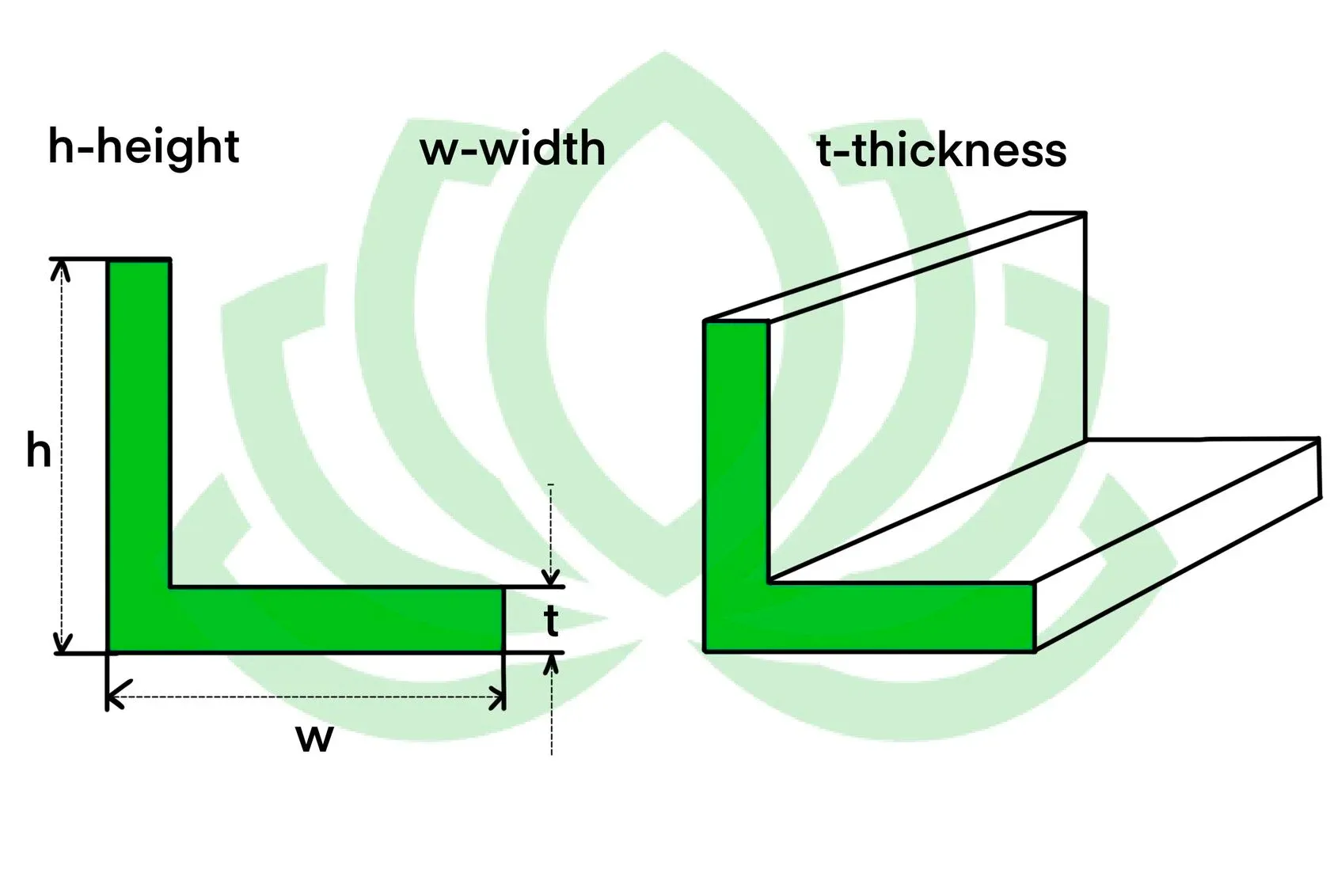

Dimensions, Weight, and Surface Area

Angle sizes: height, width, thickness, length, steel grade

Weight kg/m

Surface m2/m

Angle bar 15*15*3 L-6000 S235

0.65

0.061

Angle bar 20*20*3 L-6000 S235

0.89

0.081

Angle bar 20*20*4 L-6000 S235

1.15

0.081

Angle bar 25*25*3 L-6000 S235

1.13

0.101

Angle bar 25*25*4 L-6000 S235

1.47

0.101

Angle bar 25*25*5 L-6000 S235

1.80

0.101

Angle bar 25*25*6 L-6000 S235

2.11

0.101

Angle bar 30*30*3 L-6000 S235

1.37

0.121

Angle bar 30*30*4 L-6000 S235

1.79

0.121

Angle bar 30*30*5 L-6000 S235

2.20

0.121

Angle bar 30*30*6 L-6000 S235

2.59

0.121

Angle bar 35*35*3 L-6000 S235

1.61

0.141

Angle bar 35*35*4 L-6000 S235

2.11

0.141

Angle bar 35*35*5 L-6000 S235

2.60

0.141

Angle bar 35*35*6 L-6000 S235

3.07

0.141

Angle bar 40*40*3 L-6000 S235

1.85

0.161

Angle bar 40*40*3 L-12000 S355

1.85

0.161

Angle bar 40*40*4 L-6000 S235

2.43

0.161

Angle bar 40*40*4 L-12000 S355

2.43

0.161

Angle bar 40*40*5 L-6000 S235

3.00

0.161

Angle bar 40*40*5 L-12000 S355

3.00

0.161

Angle bar 40*40*6 L-6000 S235

3.55

0.161

Angle bar 40*40*6 L-12000 S355

3.55

0.161

Angle bar 45*45*3 L-6000 S235

2.09

0.181

Angle bar 45*45*3 L-12000 S355

2.09

0.181

Angle bar 45*45*4 L-6000 S235

2.75

0.181

Angle bar 45*45*4 L-12000 S355

2.75

0.181

Angle bar 45*45*5 L-6000 S235

3.40

0.181

Angle bar 45*45*5 L-12000 S355

3.40

0.181

Angle bar 45*45*6 L-6000 S235

4.03

0.181

Angle bar 45*45*6 L-12000 S355

4.03

0.181

Angle bar 45*45*8 L-6000 S235

5.25

0.181

Angle bar 45*45*8 L-12000 S355

5.25

0.181

Angle bar 50*50*3 L-6000 S235

2.33

0.201

Angle bar 50*50*3 L-12000 S355

2.33

0.201

Angle bar 50*50*4 L-6000 S235

3.07

0.201

Angle bar 50*50*4 L-12000 S355

3.07

0.201

Angle bar 50*50*5 L-6000 S235

3.80

0.201

Angle bar 50*50*5 L-12000 S355

3.80

0.201

Angle bar 50*50*6 L-6000 S235

4.51

0.201

Angle bar 50*50*6 L-12000 S355

4.51

0.201

Angle bar 50*50*7 L-6000 S235

5.21

0.201

Angle bar 50*50*7 L-12000 S355

5.21

0.201

Angle bar 50*50*8 L-6000 S235

5.89

0.201

Angle bar 50*50*8 L-12000 S355

5.89

0.201

Angle bar 50*50*9 L-6000 S235

6.55

0.201

Angle bar 50*50*9 L-12000 S355

6.55

0.201

Angle bar 55*55*4 L-6000 S235

3.39

0.221

Angle bar 55*55*4 L-12000 S355

3.39

0.221

Angle bar 55*55*5 L-6000 S235

4.20

0.221

Angle bar 55*55*5 L-12000 S355

4.20

0.221

Angle bar 55*55*6 L-6000 S235

4.99

0.221

Angle bar 55*55*6 L-12000 S355

4.99

0.221

Angle bar 60*60*4 L-6000 S235

3.71

0.241

Angle bar 60*60*4 L-12000 S355

3.71

0.241

Angle bar 60*60*5 L-6000 S235

4.60

0.241

Angle bar 60*60*5 L-12000 S355

4.60

0.241

Angle bar 60*60*6 L-6000 S235

5.47

0.241

Angle bar 60*60*6 L-12000 S355

5.47

0.241

Angle bar 60*60*8 L-6000 S235

7.17

0.241

Angle bar 60*60*8 L-12000 S355

7.17

0.241

Angle bar 60*60*10 L-6000 S235

8.80

0.241

Angle bar 60*60*10 L-12000 S355

8.80

0.241

Angle bar 65*65*4 L-6000 S235

4.03

0.261

Angle bar 65*65*4 L-12000 S355

4.03

0.261

Angle bar 65*65*5 L-6000 S235

5.00

0.261

Angle bar 65*65*5 L-12000 S355

5.00

0.261

Angle bar 65*65*6 L-6000 S235

5.95

0.261

Angle bar 65*65*6 L-12000 S355

5.95

0.261

Angle bar 65*65*8 L-6000 S235

7.81

0.261

Angle bar 65*65*8 L-12000 S355

7.81

0.261

Angle bar 70*70*5 L-6000 S235

5.40

0.281

Angle bar 70*70*5 L-12000 S355

5.40

0.281

Angle bar 70*70*6 L-6000 S235

6.43

0.281

Angle bar 70*70*6 L-12000 S355

6.43

0.281

Angle bar 70*70*7 L-6000 S235

7.45

0.281

Angle bar 70*70*7 L-12000 S355

7.45

0.281

Angle bar 70*70*8 L-6000 S235

8.45

0.281

Angle bar 70*70*8 L-12000 S355

8.45

0.281

Angle bar 70*70*9 L-6000 S235

9.43

0.281

Angle bar 70*70*9 L-12000 S355

9.43

0.281

Angle bar 70*70*10 L-6000 S235

10.40

0.281

Angle bar 70*70*10 L-12000 S355

10.40

0.281

Angle bar 75*75*5 L-6000 S235

5.80

0.301

Angle bar 75*75*5 L-12000 S355

5.80

0.301

Angle bar 75*75*6 L-6000 S235

6.91

0.301

Angle bar 75*75*6 L-12000 S355

6.91

0.301

Angle bar 75*75*7 L-6000 S235

8.01

0.301

Angle bar 75*75*7 L-12000 S355

8.01

0.301

Angle bar 75*75*8 L-6000 S235

9.09

0.301

Angle bar 75*75*8 L-12000 S355

9.09

0.301

Angle bar 75*75*10 L-6000 S235

11.20

0.301

Angle bar 75*75*10 L-12000 S355

11.20

0.301

Angle bar 75*75*12 L-6000 S235

13.25

0.301

Angle bar 75*75*12 L-12000 S355

13.25

0.301

Angle bar 80*80*5 L-6000 S235

6.20

0.321

Angle bar 80*80*5 L-12000 S355

6.20

0.321

Angle bar 80*80*6 L-6000 S235

7.39

0.321

Angle bar 80*80*6 L-12000 S355

7.39

0.321

Angle bar 80*80*8 L-6000 S235

9.73

0.321

Angle bar 80*80*8 L-12000 S355

9.73

0.321

Angle bar 80*80*10 L-6000 S235

12.00

0.321

Angle bar 80*80*10 L-12000 S355

12.00

0.321

Angle bar 80*80*12 L-6000 S235

14.21

0.321

Angle bar 80*80*12 L-12000 S355

14.21

0.321

Angle bar 90*90*6 L-6000 S235

8.35

0.361

Angle bar 90*90*6 L-12000 S355

8.35

0.361

Angle bar 90*90*8 L-6000 S235

11.01

0.361

Angle bar 90*90*8 L-12000 S355

11.01

0.361

Angle bar 90*90*9 L-6000 S235

12.31

0.361

Angle bar 90*90*9 L-12000 S355

12.31

0.361

Angle bar 90*90*10 L-6000 S235

13.60

0.361

Angle bar 90*90*10 L-12000 S355

13.60

0.361

Angle bar 90*90*12 L-6000 S235

16.13

0.361

Angle bar 90*90*12 L-12000 S355

16.13

0.361

Angle bar 100*100*6 L-6000 S235

9.31

0.401

Angle bar 100*100*6 L-12000 S355

9.31

0.401

Angle bar 100*100*7 L-6000 S235

10.81

0.401

Angle bar 100*100*7 L-12000 S355

10.81

0.401

Angle bar 100*100*8 L-6000 S235

12.29

0.401

Angle bar 100*100*8 L-12000 S355

12.29

0.401

Angle bar 100*100*10 L-6000 S235

15.20

0.401

Angle bar 100*100*10 L-12000 S355

15.20

0.401

Angle bar 100*100*12 L-6000 S235

18.05

0.401

Angle bar 100*100*12 L-12000 S355

18.05

0.401

Angle bar 100*100*14 L-6000 S235

20.83

0.401

Angle bar 100*100*14 L-12000 S355

20.83

0.401

Angle bar 100*100*15 L-6000 S235

22.20

0.401

Angle bar 100*100*15 L-12000 S355

22.20

0.401

Angle bar 110*110*7 L-6000 S235

11.93

0.441

Angle bar 110*110*7 L-12000 S355

11.93

0.441

Angle bar 110*110*8 L-6000 S235

13.57

0.441

Angle bar 110*110*8 L-12000 S355

13.57

0.441

Angle bar 110*110*10 L-6000 S235

16.80

0.441

Angle bar 110*110*10 L-12000 S355

16.80

0.441

Angle bar 110*110*12 L-6000 S235

19.97

0.441

Angle bar 110*110*12 L-12000 S355

19.97

0.441

Angle bar 120*120*8 L-6000 S235

14.85

0.481

Angle bar 120*120*8 L-12000 S355

14.85

0.481

Angle bar 120*120*10 L-6000 S235

18.40

0.481

Angle bar 120*120*10 L-12000 S355

18.40

0.481

Angle bar 120*120*12 L-6000 S235

21.89

0.481

Angle bar 120*120*12 L-12000 S355

21.89

0.481

Angle bar 120*120*16 L-12000 S355

28.67

0.481

Angle bar 130*130*8 L-12000 S355

16.13

0.521

Angle bar 130*130*10 L-12000 S355

20.00

0.521

Angle bar 130*130*12 L-12000 S355

23.81

0.521

Angle bar 130*130*14 L-12000 S355

27.55

0.521

Angle bar 130*130*16 L-12000 S355

31.23

0.521

Angle bar 140*140*10 L-12000 S355

21.60

0.561

Angle bar 140*140*12 L-12000 S355

25.73

0.561

Angle bar 140*140*14 L-12000 S355

29.79

0.561

Angle bar 140*140*16 L-12000 S355

33.79

0.561

Angle bar 150*150*10 L-12000 S355

23.20

0.601

Angle bar 150*150*12 L-12000 S355

27.65

0.601

Angle bar 150*150*15 L-12000 S355

34.20

0.601

Angle bar 150*150*16 L-12000 S355

36.35

0.601

Angle bar 150*150*18 L-12000 S355

40.61

0.601

Angle bar 150*150*20 L-12000 S355

44.80

0.601

Angle bar 160*160*12 L-12000 S355

29.57

0.641

Angle bar 160*160*14 L-12000 S355

34.27

0.641

Angle bar 160*160*15 L-12000 S355

36.60

0.641

Angle bar 160*160*16 L-12000 S355

38.91

0.641

Angle bar 160*160*18 L-12000 S355

43.49

0.641

Angle bar 160*160*20 L-12000 S355

48.00

0.641

Angle bar 180*180*12 L-12000 S355

33.41

0.721

Angle bar 180*180*15 L-12000 S355

41.40

0.721

Angle bar 180*180*16 L-12000 S355

44.03

0.721

Angle bar 180*180*18 L-12000 S355

49.25

0.721

Angle bar 180*180*20 L-12000 S355

54.40

0.721

Angle bar 180*180*22 L-12000 S355

59.49

0.721

Angle bar 200*200*12 L-12000 S355

37.25

0.801

Angle bar 200*200*15 L-12000 S355

46.20

0.801

Angle bar 200*200*16 L-12000 S355

49.15

0.801

Angle bar 200*200*18 L-12000 S355

55.01

0.801

Angle bar 200*200*20 L-12000 S355

60.80

0.801

Angle bar 200*200*22 L-12000 S355

66.53

0.801

Angle bar 200*200*24 L-12000 S355

72.19

0.801

Angle bar 200*200*26 L-12000 S355

77.79

0.801

Angle bar 200*200*28 L-12000 S355

83.33

0.801

Angle bar 250*250*18 L-12000 S355

69.41

1.001

Angle bar 250*250*20 L-12000 S355

76.80

1.001

Angle bar 250*250*22 L-12000 S355

84.13

1.001

Angle bar 250*250*24 L-12000 S355

91.39

1.001

Angle bar 250*250*26 L-12000 S355

98.59

1.001

Angle bar 250*250*28 L-12000 S355

105.73

1.001

Frequently Asked Questions

What is the difference between an equal and an unequal angle bar?

Equal angle bars have two legs of the exact same length, forming a symmetrical 90-degree L-shape. This provides balanced support. Unequal angle bars have one leg longer than the other, creating an asymmetrical profile designed for specific engineering scenarios where structural loads are unevenly distributed.

Which steel grade should I choose: S235 or S355?

S235 is the standard ferrous metal grade. It is cost-effective and highly versatile, making it ideal for everyday construction, residential projects, and general framing. S355 is a high-strength steel grade that is more durable and wear-resistant, specifically intended for heavy-duty load-bearing structures.

Do you supply small volumes for private projects?

Yes. We cater to both high-volume commercial developments and low-rise private residential projects, such as apartment repairs or personal farm plots. We process and quote custom volumes for all our clients.

What lengths are available?

Our steel angle bars are supplied in standard lengths of L-6000mm and L-12000mm. The exact length availability depends on the specific profile dimensions and the chosen steel grade.

Are your prices listed on the website?

We do not list fixed prices because material costs and project requirements vary. We provide individual, custom quotes based on the exact quantity and specifications of your order.
