Steel Square Hollow Sections

Square hollow sections (SHS), also referred to as steel square pipes or profile pipes, are fundamental construction materials used across multiple industries. Known for their structural integrity and uniform shape, these steel profiles form the robust base of modern metal constructions. They significantly increase the resistance of steel frameworks to static loads, deformation, and temperature fluctuations.

Contact us to get a custom quote for your required volume.

Product Specifications

We supply square hollow sections suited for a wide range of structural requirements, from heavy-duty commercial frameworks to private home construction projects. We quote custom volumes for every order, ensuring you get exactly what you need.

Steel grades: S235; S355
Standard lengths: L-6000mm; L-12000mm

Usage Advantages

Integrating square hollow sections into your project offers clear practical and structural benefits:

High Resistance: Excellent performance against static loads, torsion forces, and temperature fluctuations.
Cost Efficiency: Optimized weight-to-strength ratio allows for significant savings of metal and overall lower project costs.
Logistical Ease: The square shape facilitates efficient storage, loading, and transportation.
Workability: Uniform dimensions ensure easy installation, welding, and assembly during fabrication.
Versatility: A clean, geometric profile suitable for innovative and exposed architectural solutions.

Typical Applications

Because of their durability and clean lines, our steel square pipes are utilized across various sectors:

Construction & Infrastructure: Structural frameworks, load-bearing supports, and general metal constructions.
Fencing & Security: Decorative fencing, standard fences, window grates, and security barriers.
Consumer Goods & Recreation: Base structures for children's playgrounds, steel furniture production, and consumer goods.

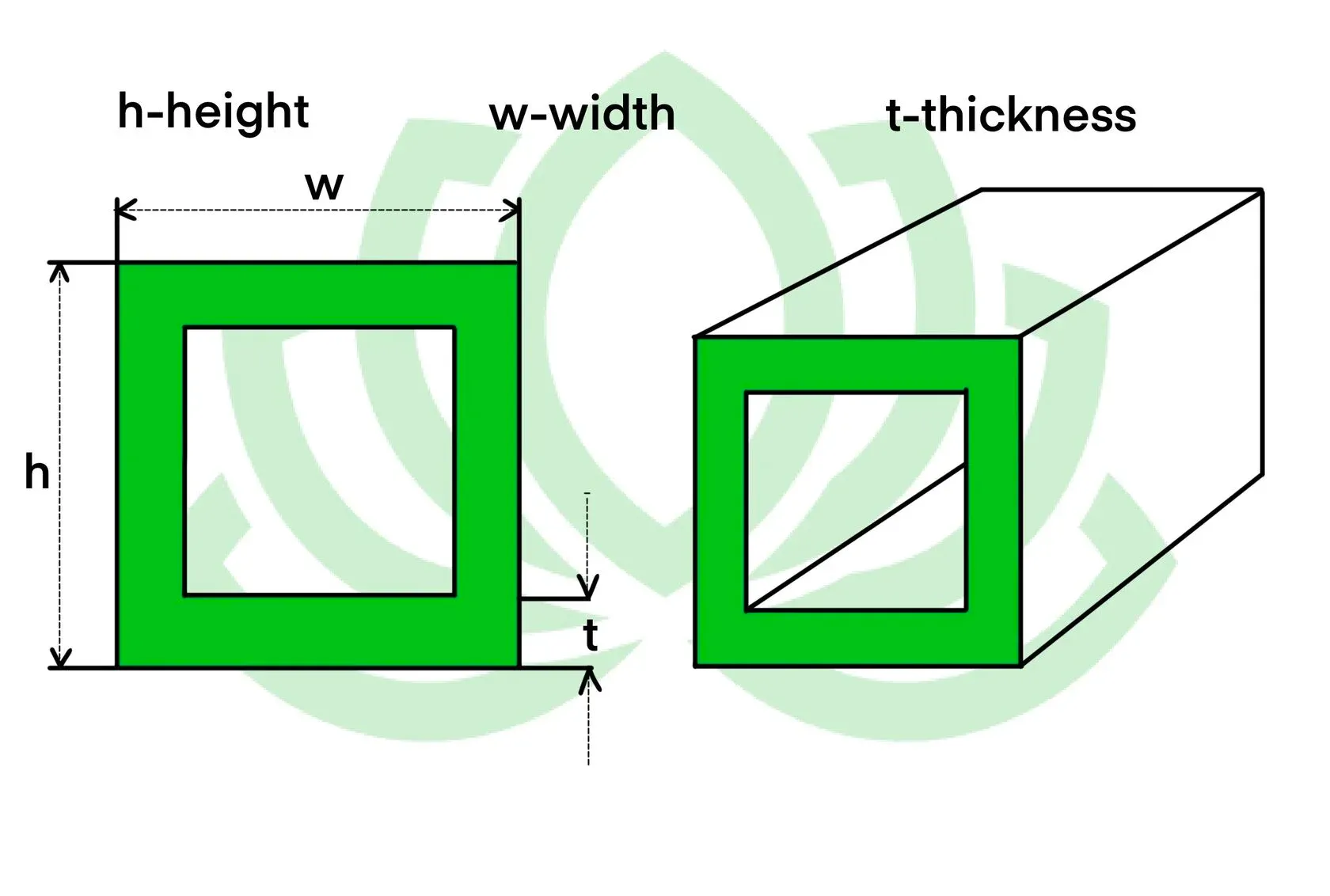

Dimensions (HWT), mm	Length (L), mm	Steel Grade	Weight, kg/m	Surface, m²/m
*10 10 * 1**	L-6000	S235	0.27	0.041
*10 10 * 1.5**	L-6000	S235	0.37	0.041
*15 15 * 1.5**	L-6000	S235	0.61	0.061
*20 20 * 1.5**	L-6000	S235	0.84	0.081
*20 20 * 2**	L-6000	S235	1.08	0.081
*25 25 * 1.5**	L-6000	S235	1.08	0.101
*25 25 * 2**	L-6000	S235	1.39	0.101
*25 25 * 3**	L-6000	S235	1.95	0.101
*30 30 * 1.5**	L-6000	S235	1.31	0.121
*30 30 * 2**	L-6000	S235	1.70	0.121
*30 30 * 3**	L-6000	S235	2.42	0.121
*30 30 * 4**	L-6000	S235	3.05	0.121
*40 40 * 1.5**	L-6000	S235	1.78	0.161
*40 40 * 2**	L-6000	S235	2.33	0.161
*40 40 * 2.5**	L-6000	S235	2.86	0.161
*40 40 * 3**	L-6000	S235	3.36	0.161
*40 40 * 3**	L-12000	S355	3.36	0.161
*40 40 * 4**	L-6000	S235	4.31	0.161
*40 40 * 4**	L-12000	S355	4.31	0.161
*40 40 * 5**	L-12000	S355	5.16	0.161
*50 50 * 1.5**	L-6000	S235	2.25	0.201
*50 50 * 2**	L-6000	S235	2.96	0.201
*50 50 * 3**	L-6000	S235	4.31	0.201
*50 50 * 4**	L-6000	S235	5.56	0.201
*50 50 * 4**	L-12000	S355	5.56	0.201
*50 50 * 5**	L-6000	S235	6.73	0.201
*50 50 * 5**	L-12000	S355	6.73	0.201
*50 50 * 6**	L-12000	S355	7.80	0.201
*50 50 * 8**	L-12000	S355	9.69	0.201
*60 60 * 1.5**	L-6000	S235	2.72	0.241
*60 60 * 2**	L-6000	S235	3.59	0.241
*60 60 * 2.5**	L-6000	S235	4.43	0.241
*60 60 * 3**	L-6000	S235	5.25	0.241
*60 60 * 4**	L-6000	S235	6.82	0.241
*60 60 * 4**	L-12000	S355	6.82	0.241
*60 60 * 5**	L-6000	S235	8.30	0.241
*60 60 * 5**	L-12000	S355	8.30	0.241
*60 60 * 6**	L-12000	S355	9.69	0.241
*60 60 * 8**	L-12000	S355	12.20	0.241
*60 60 * 10**	L-12000	S355	14.35	0.241
*70 70 * 2**	L-6000	S235	4.22	0.281
*70 70 * 3**	L-6000	S235	6.19	0.281
*70 70 * 4**	L-6000	S235	8.07	0.281
*70 70 * 4**	L-12000	S355	8.07	0.281
*70 70 * 5**	L-6000	S235	9.87	0.281
*70 70 * 5**	L-12000	S355	9.87	0.281
*70 70 * 6**	L-12000	S355	11.57	0.281
*70 70 * 8**	L-12000	S355	14.71	0.281
*70 70 * 10**	L-12000	S355	17.49	0.281
*80 80 * 2**	L-6000	S235	4.84	0.321
*80 80 * 2.5**	L-6000	S235	6.00	0.321
*80 80 * 3**	L-6000	S235	7.13	0.321
*80 80 * 3**	L-12000	S355	7.13	0.321
*80 80 * 4**	L-6000	S235	9.33	0.321
*80 80 * 4**	L-12000	S355	9.33	0.321
*80 80 * 5**	L-6000	S235	11.44	0.321
*80 80 * 5**	L-12000	S355	11.44	0.321
*80 80 * 6**	L-12000	S355	13.46	0.321
*80 80 * 8**	L-12000	S355	17.22	0.321
*80 80 * 10**	L-12000	S355	20.63	0.321
*100 100 * 2**	L-6000	S235	6.10	0.401
*100 100 * 3**	L-6000	S235	9.02	0.401
*100 100 * 3**	L-12000	S355	9.02	0.401
*100 100 * 4**	L-6000	S235	11.84	0.401
*100 100 * 4**	L-12000	S355	11.84	0.401
*100 100 * 5**	L-6000	S235	14.58	0.401
*100 100 * 5**	L-12000	S355	14.58	0.401
*100 100 * 6**	L-12000	S355	17.22	0.401
*100 100 * 8**	L-12000	S355	22.25	0.401
*100 100 * 10**	L-12000	S355	26.91	0.401
*100 100 * 12**	L-12000	S355	31.21	0.401
*100 100 * 12.5**	L-12000	S355	32.23	0.401
*120 120 * 3**	L-6000	S235	10.90	0.481
*120 120 * 3**	L-12000	S355	10.90	0.481
*120 120 * 4**	L-6000	S235	14.35	0.481
*120 120 * 4**	L-12000	S355	14.35	0.481
*120 120 * 5**	L-12000	S355	17.72	0.481
*120 120 * 6**	L-12000	S355	20.99	0.481
*120 120 * 8**	L-12000	S355	27.27	0.481
*120 120 * 10**	L-12000	S355	33.19	0.481
*120 120 * 12**	L-12000	S355	38.75	0.481
*120 120 * 12.5**	L-12000	S355	40.08	0.481
*140 140 * 3**	L-12000	S355	12.78	0.561
*140 140 * 4**	L-12000	S355	16.87	0.561
*140 140 * 5**	L-12000	S355	20.86	0.561
*140 140 * 6**	L-12000	S355	24.76	0.561
*140 140 * 8**	L-12000	S355	32.29	0.561
*140 140 * 10**	L-12000	S355	39.47	0.561
*140 140 * 12**	L-12000	S355	46.29	0.561
*140 140 * 12.5**	L-12000	S355	47.93	0.561
*150 150 * 3**	L-12000	S355	13.73	0.601
*150 150 * 4**	L-12000	S355	18.12	0.601
*150 150 * 5**	L-12000	S355	22.43	0.601
*150 150 * 6**	L-12000	S355	26.64	0.601
*150 150 * 8**	L-12000	S355	34.81	0.601
*150 150 * 10**	L-12000	S355	42.61	0.601
*150 150 * 12**	L-12000	S355	50.05	0.601
*150 150 * 12.5**	L-12000	S355	51.86	0.601
*160 160 * 3**	L-12000	S355	14.67	0.641
*160 160 * 4**	L-12000	S355	19.38	0.641
*160 160 * 5**	L-12000	S355	24.00	0.641
*160 160 * 6**	L-12000	S355	28.53	0.641
*160 160 * 8**	L-12000	S355	37.32	0.641
*160 160 * 10**	L-12000	S355	45.75	0.641
*160 160 * 12**	L-12000	S355	53.82	0.641
*160 160 * 12.5**	L-12000	S355	55.78	0.641
*180 180 * 4**	L-12000	S355	21.89	0.721
*180 180 * 5**	L-12000	S355	27.14	0.721
*180 180 * 6**	L-12000	S355	32.30	0.721
*180 180 * 8**	L-12000	S355	42.34	0.721
*180 180 * 10**	L-12000	S355	52.03	0.721
*180 180 * 12**	L-12000	S355	61.36	0.721
*180 180 * 12.5**	L-12000	S355	63.63	0.721
*180 180 * 16**	L-12000	S355	78.94	0.721
*200 200 * 4**	L-12000	S355	24.40	0.801
*200 200 * 5**	L-12000	S355	30.28	0.801
*200 200 * 6**	L-12000	S355	36.06	0.801
*200 200 * 8**	L-12000	S355	47.37	0.801
*200 200 * 10**	L-12000	S355	58.31	0.801
*200 200 * 12**	L-12000	S355	68.89	0.801
*200 200 * 12.5**	L-12000	S355	71.48	0.801
*200 200 * 16**	L-12000	S355	88.99	0.801
*220 220 * 6**	L-12000	S355	39.83	0.881
*220 220 * 8**	L-6000	S355	52.39	0.881
*220 220 * 10**	L-12000	S355	64.59	0.881
*220 220 * 12.5**	L-12000	S355	79.33	0.881
*250 250 * 5**	L-12000	S355	38.13	1.001
*250 250 * 6**	L-12000	S355	45.48	1.001
*250 250 * 8**	L-12000	S355	59.93	1.001
*250 250 * 10**	L-12000	S355	74.01	1.001
*250 250 * 12**	L-12000	S355	87.73	1.001
*250 250 * 12.5**	L-12000	S355	91.11	1.001
*250 250 * 16**	L-12000	S355	114.11	1.001
*300 300 * 5**	L-12000	S355	45.98	1.201
*300 300 * 6**	L-12000	S355	54.90	1.201
*300 300 * 8**	L-12000	S355	72.49	1.201
*300 300 * 10**	L-12000	S355	89.71	1.201
*300 300 * 12**	L-12000	S355	106.57	1.201
*300 300 * 12.5**	L-12000	S355	110.73	1.201
*300 300 * 16**	L-12000	S355	139.23	1.201
*300 300 * 20**	L-12000	S355	170.44	1.201
*400 400 * 8**	L-12000	S355	97.61	1.601
*400 400 * 10**	L-12000	S355	121.11	1.601
*400 400 * 12.5**	L-12000	S355	149.98	1.601
*400 400 * 16**	L-12000	S355	189.47	1.601
*400 400 * 20**	L-12000	S355	233.24	1.601

Frequently Asked Questions

What is the difference between S235 and S355 steel grades?

S235 is a standard structural steel with a minimum yield strength of 235 MPa, ideal for general construction and welding. S355 is a high-strength structural steel with a minimum yield strength of 355 MPa, used in heavy-duty applications that require superior load-bearing capabilities.

Can I order SHS for a small private project?

Yes. We supply steel materials in custom volumes to support everything from large-scale industrial developments to private home construction and DIY projects.

How is the price calculated?

We currently do not list fixed prices on our website because material costs fluctuate and pricing depends on your specific order volume. We provide custom, competitive quotes for each inquiry.

Why choose a square hollow section over a circular one?

Square hollow sections offer flat surfaces that make welding, joining, and fabrication easier without the need for special profiling or coping. They are also highly efficient for resisting bending loads in multiple directions.

Are these sections easy to transport?

Yes. The flat edges of square profile pipes allow them to be stacked securely and compactly, which optimizes storage space and simplifies transportation logistics.
